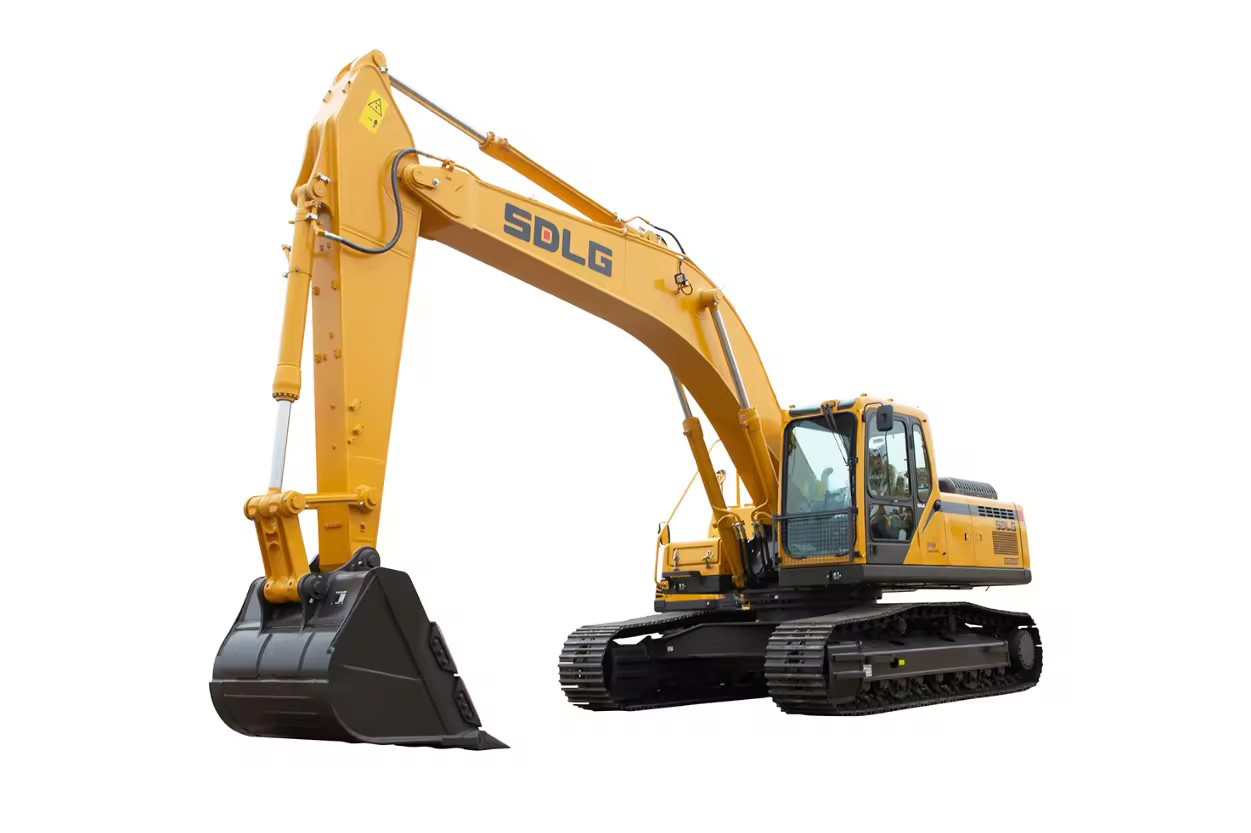

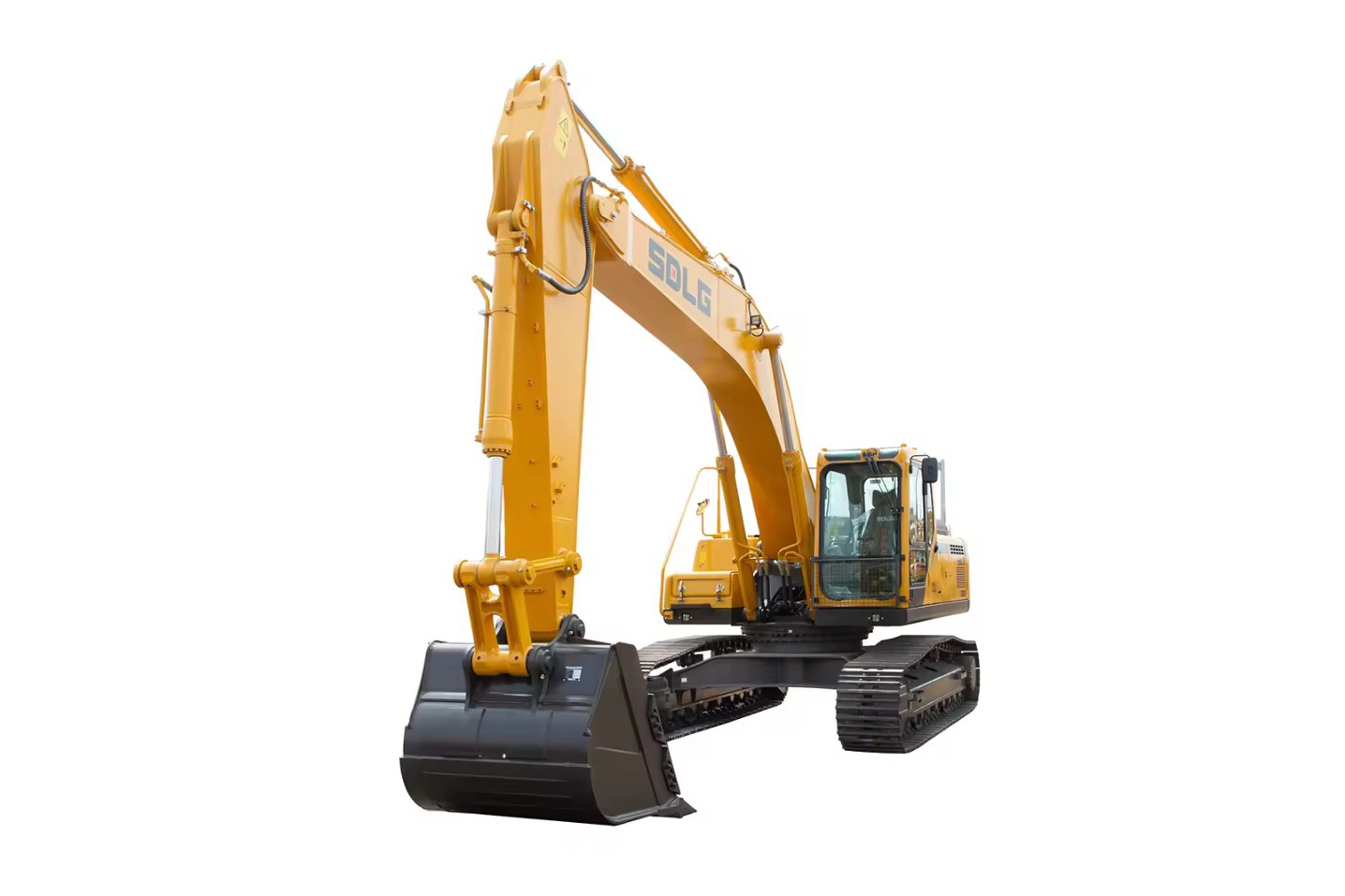

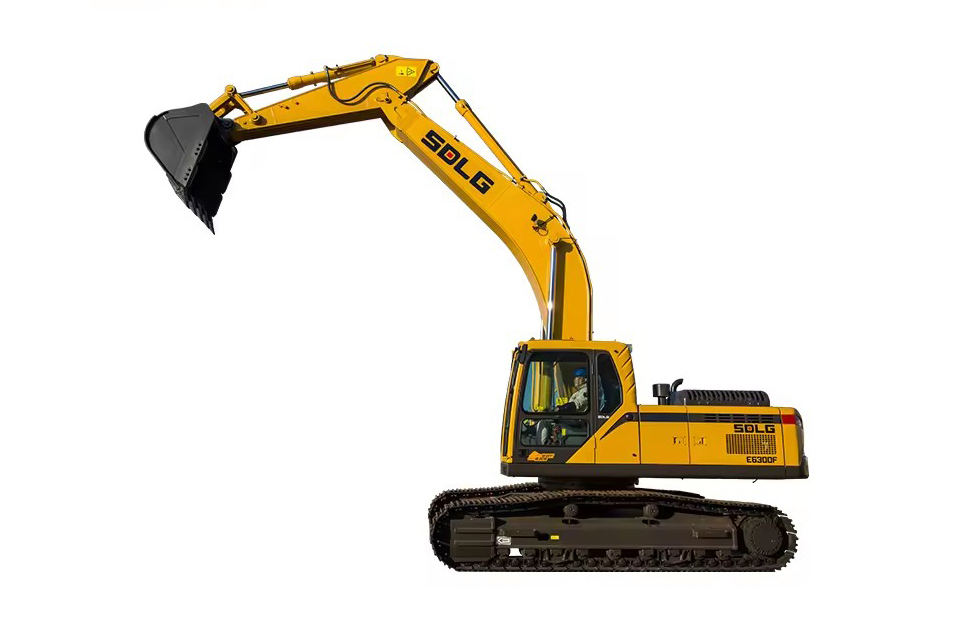

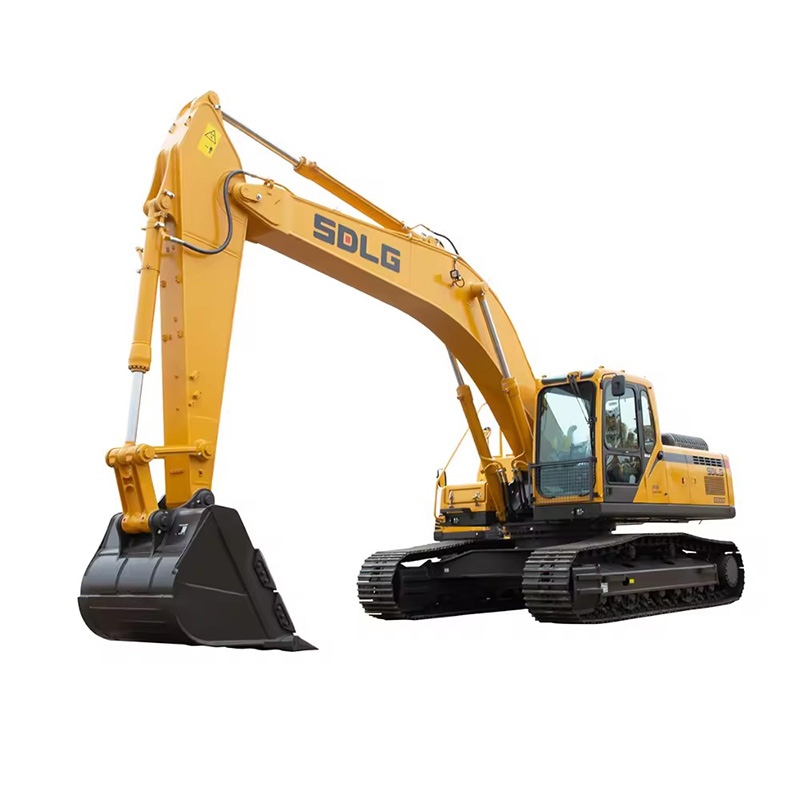

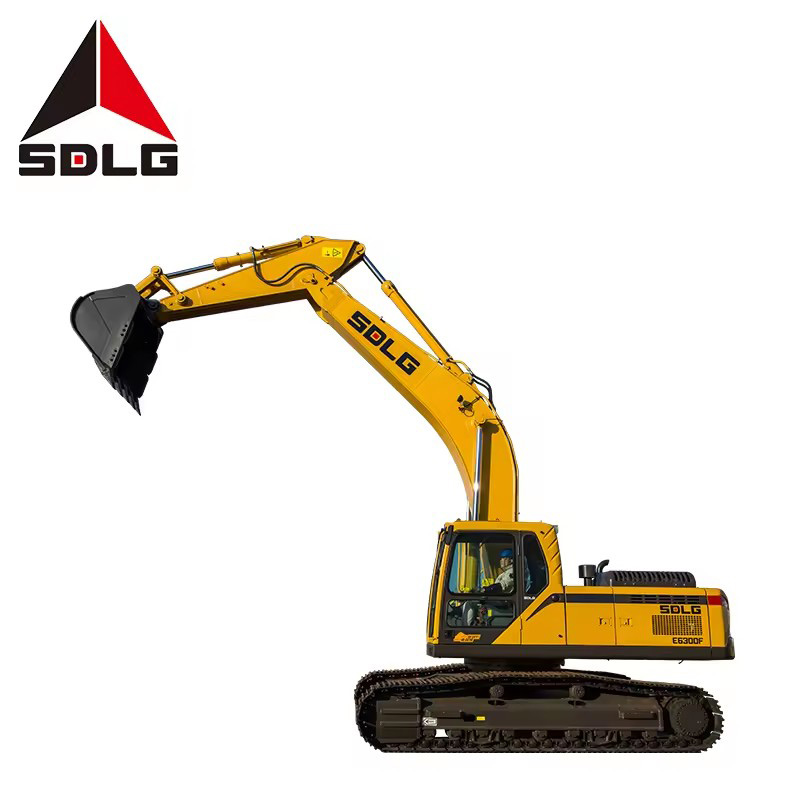

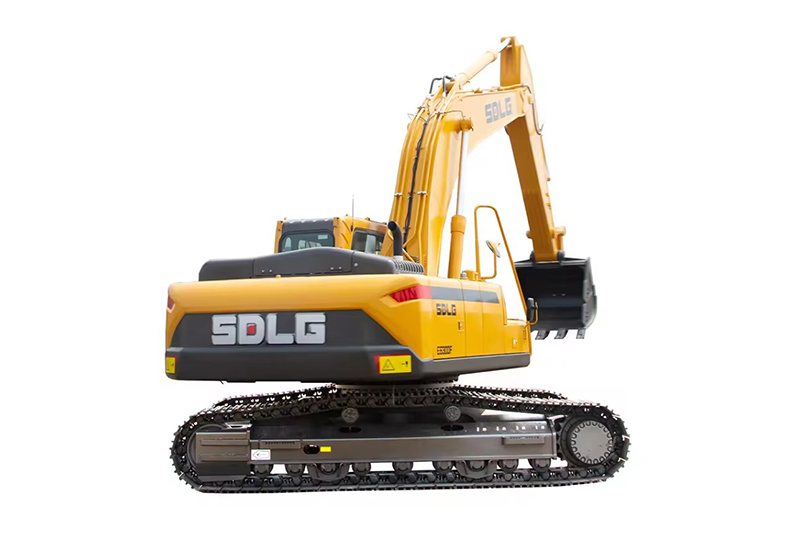

SDLG Crawler Excavator E6300f Digger 30t Excavator Machine
E6300f
Product Introduction
E6300F is a key product developed by Shandong SDLG through in-depth study of the Chinese market. The excavator’s rugged chassis, heavy-duty work equipment and optimized power hydraulics make it ideally suited for a variety of challenging working conditions.
The Shandong Lingong-BFM8-25T2 engine specially designed by Shandong Lingong has the characteristics of low speed and high torque, supercharging and intercooling, and can meet T3 emissions. It uses carefully tuned EMS engine management technology to strike a balance between fuel consumption and efficiency, providing powerful, economical, environmentally friendly and highly reliable performance.
The machine is equipped with a dual-pump constant power negative flow hydraulic system with automatic sensor control, regeneration, priority and other functions. The system has flexible response, high production efficiency, strong excavation capability, precise operation, good economy, and energy saving of more than 5%.
A reinforced undercarriage with longer tracks and a wider chassis enhances the machine's stability during operation. It comes standard with a heavy-duty boom and bucket designed to handle tougher working conditions.
The E6300F is equipped with EECU, VECU, IECU, KEYPAD and GPS electronic control systems to promote collaboration, energy efficiency and effectiveness. The spacious cab has excellent sound insulation and is equipped with a three-sided sunshade net. In addition, it uses silicone rubber shock absorbers to reduce vibration and shock.
In addition, the machine is available with a variety of optional work gear and accessories, including breaker hammers, providing versatility for a variety of applications.
In summary, SDLG's E6300F is a rugged, versatile excavator designed to excel in demanding work environments, offering advanced technology, operator comfort and superior performance. With a focus on reliability, efficiency and adaptability, the E6300F is ideally suited for a variety of construction and industrial applications.
Product parameters
| Total mass (kg) | 30100 | Slewing speed (r/min) | 10.7 |
| Bucket capacity m3 | 1.5 | Traveling speed (low/high) (km/h) | 3.4/5.4 |
| Bucket capacity range | 1.5～1.9 | Maximum digging force (kN) | 193.5 |
| Average ground pressure (mm) | 57.0 | altitude(m) | 3500 |
| Circumstance temperature(℃) | -25~45 | Wading Depth(mm) | 744 |
| Overall length (mm) | 10560 | Contour dimension of complete machine (transfer position) (mm) | 10560×3190×3290 |
| Overall width (mm) | 3190 | Overall width of upper assembly | 2890 |
| Overall height (mm) | 3290 | Overall width of chassis (mm) | 3190 |
| Boom length (mm) | 6200 | Overall height to cab top (mm) | 3030 |
| Wheel track | 2590 | Rear slewing radius (mm) | 3110 |
| Arm length (mm) | 3050 | Overall height to hood top (mm) | 2400 |
| wheelbase（mm） | 4015 | Ground clearance of upper assembly (mm) | 1145 |
| Crawler wheelbase/Wheelbase (mm) | 4015 | Overall length of crawler (mm) | 4870 |
| Maximum digging radius (mm) | 10690 | Wheel track of crawler/Wheel track (mm) | 2590 |
| Maximum digging depth (mm) | 7320 | Track shoe width (mm) | 600 |
| Maximum discharge height(mm) | 7050 | Minimum ground clearance (mm) | 480 |
| Overall length during transfer (mm) | 10560 | Overall height of working mechanism during transfer (mm) | 3290 |
| Shovel width (with band edge) (mm) | 1530 | Maximum digging radius of reference ground (mm) | 10490 |
| Maximum digging depth under length of bottom surface of 2.5m (mm) | 7140 | Maximum vertical digging depth (mm) | 6200 |
| Maximum digging height (mm) | 10040 | Minimum front turning radius (mm) | 4180 |
| Engine model/Drive Motor Model | BFM8-25T2 | Number of cylinders - bore x stroke (mm) | 6-110×136 |
| Engine type | four-stroke、turbocharged、inter-cooled | min fuel consumption rate | 184 |
| Engine power (KW) | 183 | Maximum torque (N.m)/rotation speed (r/min) | 1050/1350 |
| Rated rotation speed (r/min) | 1800 | Emission standard | GB 20891-2007 |
| Displacement (ml) | 7751 | - | - |
| Hydraulic type | Double-pump constant-power positive flow control system | Maximum flow rate (L/min) | 2×324+27 |
| Working pressure (MPa) | 33/35 | Main pump model | V90N180 |
| Main valve model | V28M | Motor (rotary/travel) model | 14744888/14797015 |
| Hydraulic control type | Pilot-actuated proportional control | - | - |
| Number of supporting wheel (one side) | 9 | Number of carrier roller (one side) | 2 |
| Track shoe width (three-teeth) (mm) | 600 | Type of travel brake | Wet disc |
| Slewing type | Hydraulic internal-tooth single-row ball bearing | Model of slewing bearing | - |
| Type of slewing brake | Wet disc | - | - |
| Type of working load | - | Boom cylinder - bore × diameter of piston rod × stroke (mm) | 2-140×95×1480 |
| Stick cylinder - bore × diameter of piston rod × stroke (mm) | 1-150×105×1745 | Bucket cylinder - bore × diameter of piston rod × stroke (mm) | 1-140×95×1140 |
| Dozer blade cylinder - bore x diameter of piston rod x stroke (mm) | - | Normal cycle time (s) | - |
| Fuel filling capacity（L） | 470 | Oil filling capacity of walking reducer (L) | 2×6.8 |
| Hydraulic oil filling capacity（L） | 185+360 | Oil filling capacity of slewing reducer (L) | 6.1 |
| Engine oil filling capacity（L） | 32 | Filling capacity of water radiator antifreeze coolant | 36 |
